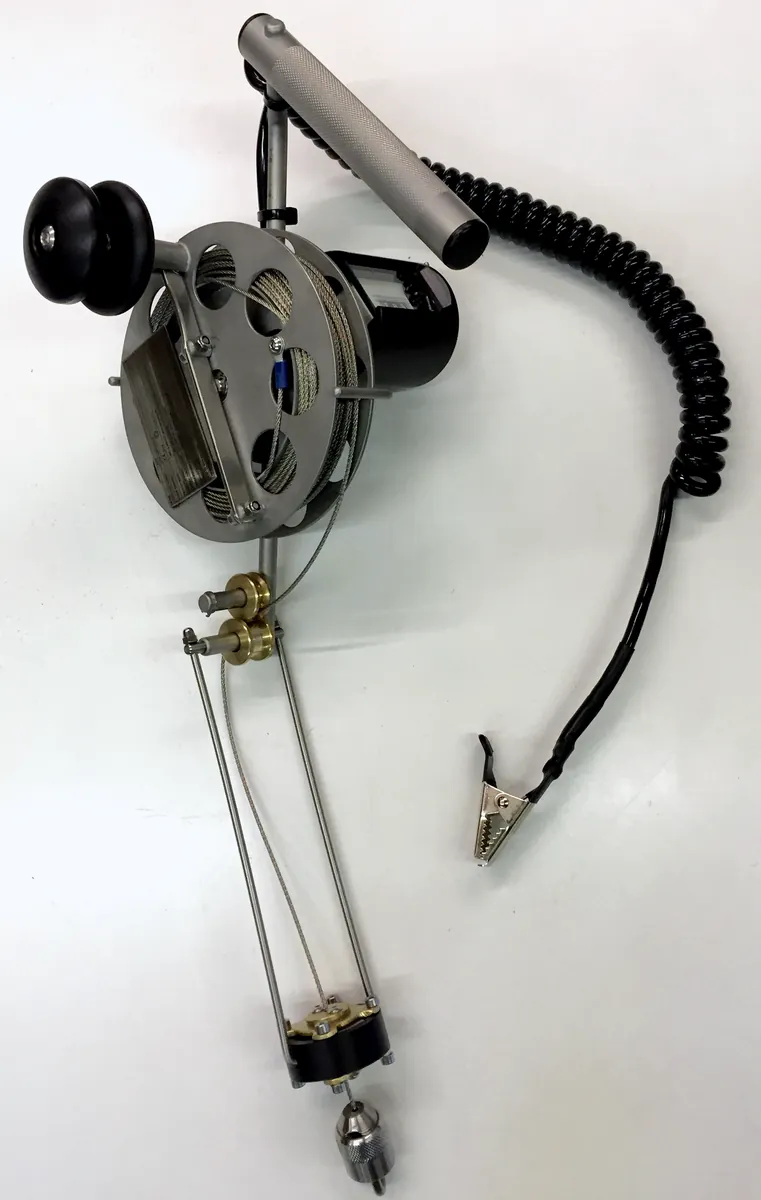

MK 1A Winder for open sampling
- Cable length
- 30 m+ 2 lengths
- Max. sampler capacity
- Up to 1500 ml, with the support leg
- Sampling type
- Open
| Sampling type | Open |
|---|---|
| Max. sampler capacity | Up to 1500 ml, with the support leg |
| Cable length | 30 m standard10 m or 20 m on special order |
| Cable type | 2.0 mm Ø stainless steel cable |
| Weight of winder | 3 kg |
| Material | Stainless steel |
| Features (as described) | Cable wiper fitted; depth counter optional |
Certification
ATEX and IECEx certified as part of a kit, not on its own.
The certificates cover the MK 1A winder in the MK 1A open sampling kit, together with the samplers and ancillaries listed in Table 1: ALBTMS 382, ALBTMS 501, ALBTMS 502, ALBTMS 1001, ALBTMS 1002, BTMS 101, BTMS 102, BTMS 301, BTMS 302, BTMS 1002, ALS 501, ALS 502, ALS 542, ALS 1001, ALS 1002, ALS 1501, ALS 1502, ALSB-V 502, ALSB-V 1002. With any other sampler it is not a certified assembly.
- ATEX certificate
- CML 21ATEX6978X, Table 1
- IECEx certificate
- IECEx CML 21.0114X
- ATEX marking
- II 1 G Ex h IIC T3 Ga
- IECEx marking
- Ex h IIC T3 Ga
- Ambient temperature
- −20 °C to +70 °C
- Condition of use
- The earth lead is permanently attached and must be clamped to a suitable earth point before operation.
Whether the certificate covers the 10 m and 20 m special-order cables is being confirmed.
Every UKSGL product is designed and manufactured under ISO 9001:2015, LRQA approval 00002231.
Documents
Need it adapted or modified? UKSGL adapts equipment to customer requirements. Describe what you need in your quote request.
